Description

The DRC-13A detects flames by using infrared light and CO₂ resonance radiation for comparison.

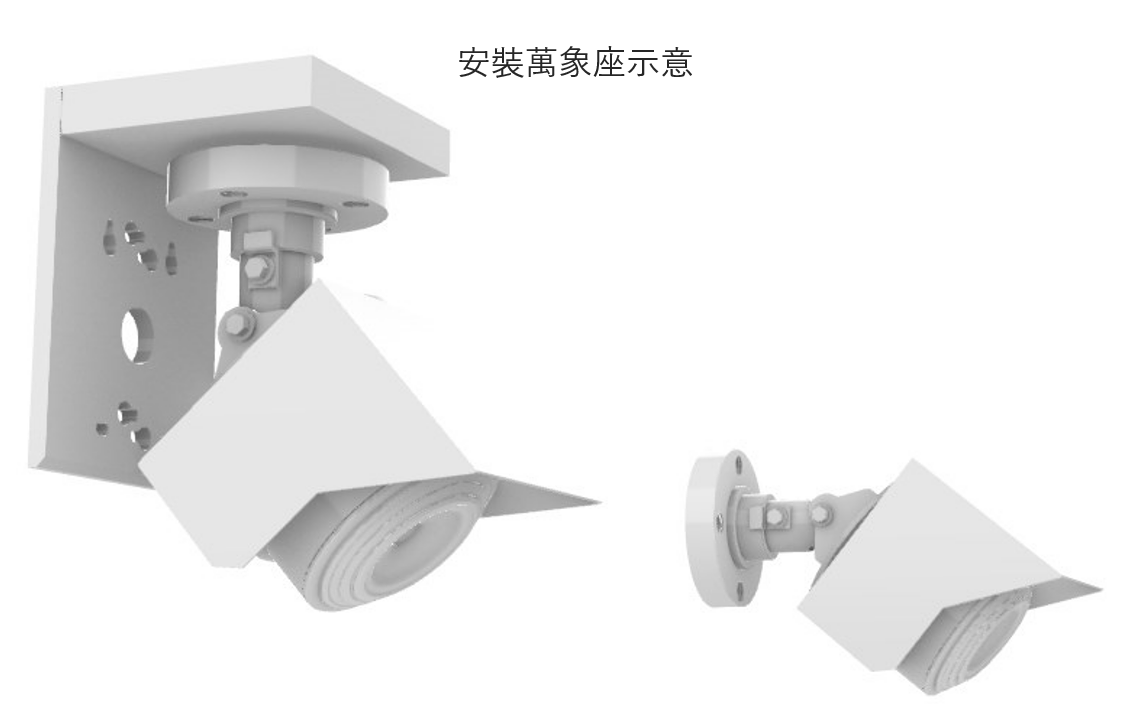

It has a detection angle of 100 degrees and an effective range from 13 to 20 meters. An optional universal mounting bracket is available to adjust the monitoring direction and angle on site.

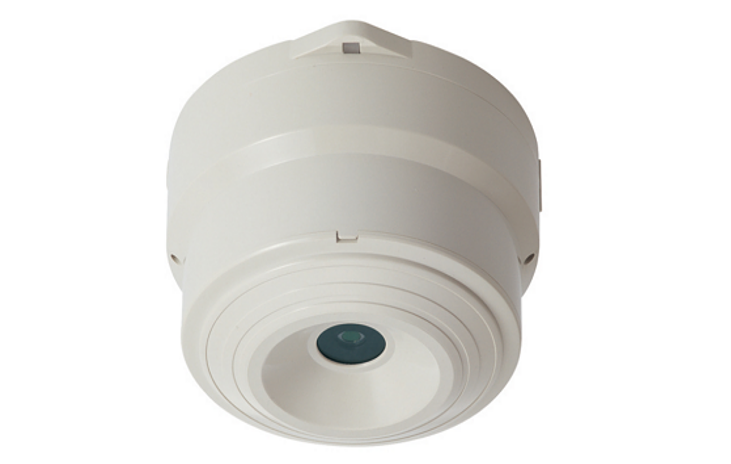

The DRC-13A Infrared Flame Detector can detect flames from a long distance without relying on heat or smoke. This function makes it suitable for large areas or locations where smoke detectors or heat detectors cannot meet technical requirements.

Specifications

• Type: Point-type sensor using infrared rays

• Standard detection range: 13 m ~ 20 m

• Maximum viewing angle: 100° (± 5°)

• Model number: Sensor No. 2023 ~ 20

• Rated current: DC 24 V, 100 mA

• Operating voltage: DC 15 V ~ 30 V

• Monitoring current: Approx. 70 μA (at DC 24 V)

• Operating wavelength: Infrared rays

• Operating temperature range: -10°C ~ 50°C

• Output signal: Relay contact signal upon activation

• Contact capacity: DC 24 V, 60 mA

Construction

• Mounting type: Surface mount

• Material:

  • Main body: Flame-retardant resin

  • Base: Flame-retardant resin

• Color:

  • Main body: Light gray

  • Base: Light gray

• Weight: Approx. 170 g (including base)

Compatible accessories:

• Box & cover: Indoor square outlet box (JIS C 8340)

• Cover: Indoor round cover (JIS C 8340)
