  • DC-M9415 Series Wall Mount Strobe Installation Sheet (UL)

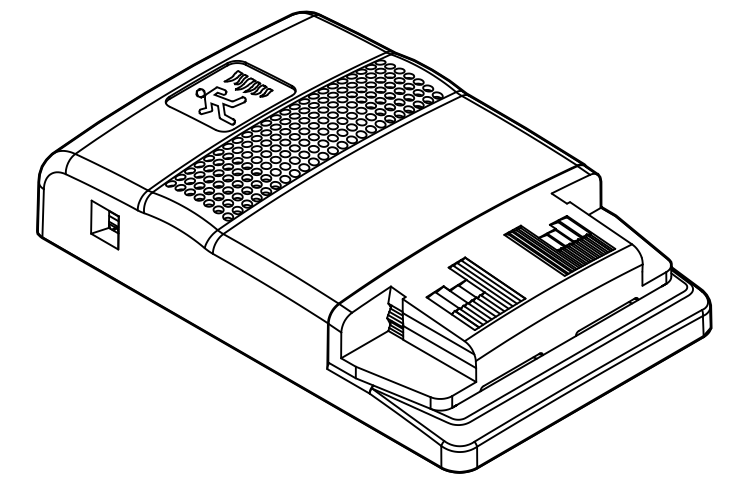

DC-M9415 Series Wall Mount Strobe Installation Sheet (UL)

Code: DC-M9415
Manufacturers: GST
Origin: China

Description
The DC-M9415 Series Wall Mount Strobe is a visible fire alarm
notification appliance that is designed for mounting on indoor walls.
See Table 1 for a list of model numbers.

Table 1: Models
Description Model number
Strobe, white DC-M9415W
Strobe, red DC-M9415R

The strobe includes a field-configurable switch for selecting the desired
candela output and a field-configurable jumper for the strobe signal
output. The candela output setting is locked in place and remains
visible after final installation.
This strobe features an enhanced synchronization circuit to comply
with the latest requirements of UL 1971
Signaling Devices for the
Hearing Impaired
.
Synchronized operation requires that you connect the DC-M9415
Series Wall Mount Strobe to a NAC output set for Synch Mode, or to a
separate DC-M9410 Signal Synchronization Module.

Specifications

Operating voltage 24 VDC or 24 VFWR nominal
Strobe operating current See Table 2
Light output Selectable at 15, 30, 75, and 110 cd
Synchronization Meets UL 1971 requirements. Maximum
allowed resistance between any two devices
is 20 Ω. Refer to specifications for the
synchronization control module, this strobe,
and the control panel to determine allowed
wire resistance.
Strobe signal rate 1 flash per second (fps)
Wire size 12 to 18 AWG (0.75 to 2.50 mm²)
Compatible electrical
boxes
Single-gang box, 2-1/2 in. (64 mm) deep
Operating environment
Temperature
Relative humidity
32 to 120°F (0 to 49°C)
0 to 93% noncondensing
